SP0313.01 : Bơm định lượng - 2DP[M]XS - Depamu
Thông số chính :

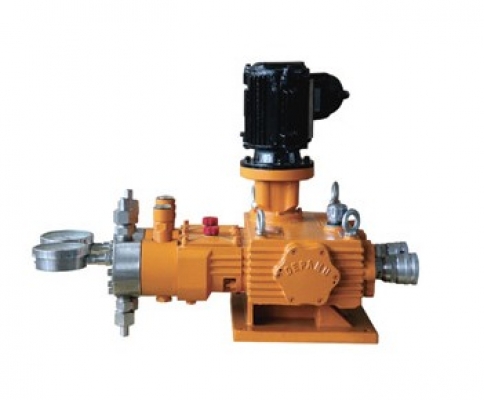

Bơm định lượng - 2DP[M]XS - Depamu - Metering Pump
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Option

● The pump head with a hydraulic membrane type, a plunger type and a piston type;
● Automatic emptying, pressure release and oil supply valves in the hydraulic membrane pump, with excellent performance, safety and no leakage;
● One-piece “Oude” worm gear variable transmission mechanism, with low noise and high efficiency;
● Simple, reliable and high-performance sleeve-adjustable eccentric transmission mechanism, with stepless stroke control between 0 and 100%;
● One-way valves on the inlet and the outlet adopt high-grade and anti-corrosive ball valves and linear tightness to effectively guarantee metering precision and fluidit;
● High-performance plungers and fillers and sealing components from Germany, long service life and excellent sealing performance;
● Oil immersion type lubrication, ensuring the long-time and reliable use of variable speed transmission parts;
● The double-head pump and the flow rate adjusting mechanism are mutually independent, a proportioning addition pump can be made
● The flow rate can be adjusted in various modes of artificial mode, electric mode, frequency conversion mode and pneumatic mode.

Type

Flow Rate L/H

Motor Power

Plunger

Diameter
фmm

0.37KW

0.55KW

Discharge Pressure Mpa

2DP(M)XS15/12/18

15

12

18

10

2DP(M)XS22/10/15

22

10

15

12

2DP(M)XS35/6.4/9.6

35

6.4

9.6

15

2DP(M)XS62/3.6/5.4

62

3.6

5.4

20

2DP(M)XS95/2.3/3.4

95

2.3

3.4

25

2DP(M)XS140/1.6/2.4

140

1.6

2.4

30

2DPXS190/1.1/1.7

190

1.1

1.7

35

2DPXS245/0.91/1.3

245

0.91

1.3

40

2DPXS315/0.72/1.0

315

0.72

1

45

2DPXS388/0.58/0.86

388

0.58

0.86

50

2DPXS470/0.48/0.71

470

0.48

0.71

55

2DPXS560/0.4/0.6

560

0.4

0.6

60
