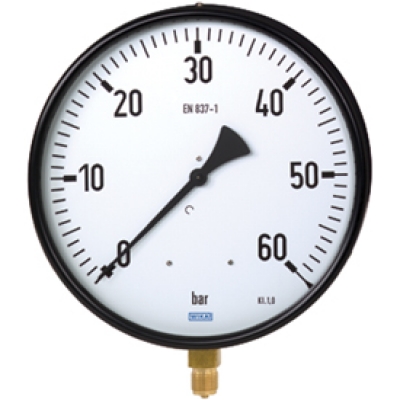

SP0605.01 : Đồng hồ áp suất thông dụng Y | YZ | Z - 60 | 100 | 150 | GUANSHAN
Thông số chính :
Đồng hồ áp suất thông dụng Y | YZ | Z - 60 | 100 | 150 | GUANSHAN
Chân ren dưới | chân ren sau mặt thép đen | Thép không rỉ
Y - General Pressure Gauge | YZ - Vacuum Pressure Gauge | Z - Vacuum Gauge
General pressure gauge Y | YZ | Z - 60 | 100 | 150 | GUANSHAN

Đồng hồ áp suất | Đồng hồ nhiệt độ | Van điều áp | Bộ điều áp | Lưu lượng khí
Hãng cung cấp : GUANSHAN | HAKIN
Model : Y | YZ | Z - 60 | 100 | 150 | 200 |
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Application

Capsule pressure gauges are designedfor extremely low pressureof gas which is not explosive and corrosive to copper and alloy. Hakin capsule pressure gauges are widely used on boilers, gas piping, combustion train and other analogous devices.

Material

Pressure element: capsule, brass

Movement: phosphor bronze

Dial: aluminium, white, black lettering

Pointer: aluminium, black

Case: steel with black paint or steel chromeplate

Window: general glass

Working temperature: -40℃+70℃,Relative Humidity: ≤ 85%

With zero adjustment

Connection thread and scale can be optional.

Model

Range
(KPa)

Diameter
(mm)

Connection

Accuracy

Y - 60

0-1.6 to 0-60

60

M14*1.5

1.0 | 1.6 | 2.5

Y - 100

0-1.6 to 0-60

100

M20*1.5

1.0 | 1.6 | 2.5

Y - 150

0-1.6 to 0-60

150

M20*1.5

1.0 | 1.6 | 2.5

Y - 200

0-0.16 to 0-60

200

M20*1.5

1.0 | 1.6 | 2.5
