SP0301.01 : Bơm hút chân không - 2BE1 - EVP
Thông số chính :
Bơm hút chân không - 2BE1 - EVP - Vacuum pump - Dry vacuum pump
EVP series dry scroll vacuum pump
Hãng cung cấp : EVP
Model : 2BE1
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Vacuum pump -Liquid Ring Vacuum Pump

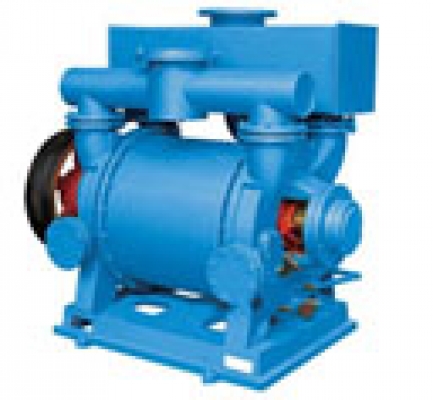

2BE1 series Liquid ring vacuum pump and compressor

BE1 series water ring vacuum pumps are the products with high efficiency and energy saving, which are manufactured by our company combining with the advanced technology of the imported products. These series pumps are single stage and single function structure and have many advantages. Such as: structure is simple, easy to maintain and reliable operation and so on. They can used to the large of water drainage and load shock wave and other hard conditions. Compare to the SK, 2SK, SZ series water ring vacuum pumps are widely used in our country at present, 2BE1 series are the ideal replacement with high vacuum, low power, and reliable operation.

Main features:
1, All bearings adopt the imported products with Japanese NSK to ensure the precise orientation of impeller and high stability during the running

.2, The material of the impeller is welded with nodular iron or steel to ensure the high stability and increase the lifetime of the pump greatly during any harsh conditions.

3, The pulley (when the pump is driven by the belt) adopts standard high precise taper bushing pulley to keep the reliable running and increase the lifetime; also it is easy to dismantle.

4, The coupling (driven directly) adopts standard high strength elastic product. The elastic element is made of polyurethane to keep the reliable operation and long lifetime of the pump.

5, The pump body is made of steel or stainless steel to increase the lifetime of the pump five times than normal material
6, The shaft sleeve as the most easily damaged part, our shaft sleeve is made of stainless steel to increase the lifetime of the pump 5 times than normal material.

7, Special separator built-on the pump can save the space and reduce the noise efficiently.
8, All the parts are cast by the resin sands with great quality, no puttying. Keep the heat dissipation is the best.
9, The mechanical seals (optional) adopt the imported parts to fully ensure the pump in the long-running process without leakage.





Model

Ultimate pressure
 hPa

Rotary speed (r/min)

Pumping Speed (m3/min)

Motor  power
(kW)

2BE1 103

33

1300

5

11

1450

5.8

11

1625

6.4

15

1750

7

15

2BE1 153

33

1100

7.5

15

1300

9

18.5

1450

10

18.5

1625

11

22

1750

11.9

30

2BE1 202

33

790

9.5

18.5

880

11

18.5

980

12

22

1100

14

30

1170

15

30

2BE1 203

33

790

14

30

880

16

30

980

18

37

1100

20

45

1170

21

45

2BE1 252

33

558

20

30

660

25

37

740

28

45

820

30

55

880

33

75

2BE1 253

33

560

28

45

590

30

55

660

35

55

740

39

75

820

43

90

2BE1 303

33

466

43

55

520

45

75

590

52

75

660

58

90

740

62

110

2BE1 353

33

390

55

75

415

58

90

464

65

110

520

72

132

590

81

160



Model

Ultimate pressure
 hPa

Transmission type

Motor voltage
(V)

Weight kg

Inlet Diam
(mm)

Outlet Diam
(mm)

2BE1 103

33

Belt

380

240

65

65

Direct coupling

380

240

Belt

380

280

Belt

380

280

2BE1 153

33

Belt

380

350

100

100

Belt

380

400

Direct coupling

380

400

Belt

380

440

Belt

380

500

2BE1 202

33

Belt

380

850

125

125

Belt

380

850

Direct coupling

380

925

Belt

380

945

Belt

380

945

2BE1 203

33

Belt

380

995

125

125

Belt

380

995

Direct coupling

380

1065

Belt

380

1085

Belt

380

1085

2BE1 252

33

Belt

380

1460

150

150

Belt

380

1515

Direct coupling

380

1693

Belt

380

1645

Belt

380

1805

2BE1 253

33

Belt

380

1695

150

150

Belt

380

2190

Belt

380

2170

Direct coupling

380

2215

Belt

380

2055

2BE1 303

33

Belt

380

2645

200

200

Belt

380

2805

Direct coupling

380

3080

Belt

380

2925

Direct coupling

380

3160

2BE1 353

33

Belt

380

3560

250

250

Belt

380

3665

Belt

380

3905

Belt

380

4040

Direct coupling

380

4750
