Thông số chính :
Đồng hồ lưu lượng sóng siêu âm gắn tường | Cảm biến kẹp vào đường ống | DMTFB | DMTFB wall-mount Clamp-on Transit Time | DYNAMETERS | Flowmeter

CTCP GIẢI PHÁP CÔNG NGHIỆP | Chế tạo thiết bị | Máy móc | Dây chuyền | Thiết bị sấy | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) SIEMENS ( Đức )
Hãng cung cấp : DYNAMETERS
Model : DMTFB
Chất lượng : Bảo hành 18 tháng
 Catalog Video

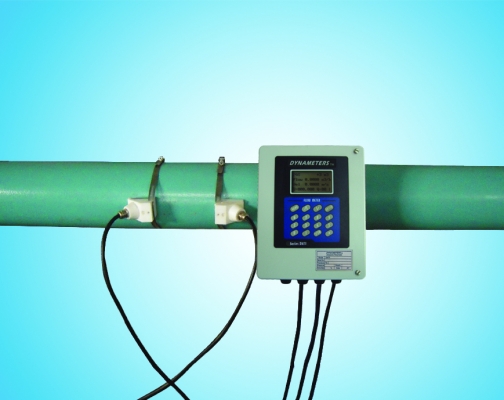

Series DMTFB wall-mount Clamp-on Transit Time Ultrasonic Flow Meter



Features

- Due to the non-invasive nature of the clamp-on technology, there is no pressure drop, no moving parts, no leakage, no risk of contamination and corrosion.

- Measurement is independent of fluid conductivity with wider applications than magnetic meters.

- Non-invasive, NEMA 4X (IP65) clamp-on transducer is easy to install and cost efficient. Since the transducers do not contact with the liquid, fouling and maintenance are eliminated.

- Parallel operation of positive, negative and net flow totalizers with multiplier, while the output of totalizer pulse or flow rate frequency output are transmitted via open collector terminal.

- Standard type and Explosion-Proof ATEX(ExdIIBT6; LCIE 09 ATEX 3008) type are available, with wide operating temperature range : -40℃~250℃.

- Wide range of pipe sizes from DN15 to 4500.

- Clamp-on transducers require no pipe cutting or processing interrupted.

- Wide bi-directional flow range of -40 to 40 ft/s (-12 to 12 m/s).

- Up to 8GB SD card data logger can memory flow rate, total flow, velocity and time. Time interval can be freely setup by user.
