SP0101.01 : TGF450 COMATE Đồng hồ lưu lượng Khí nén | Nito
Thông số chính :

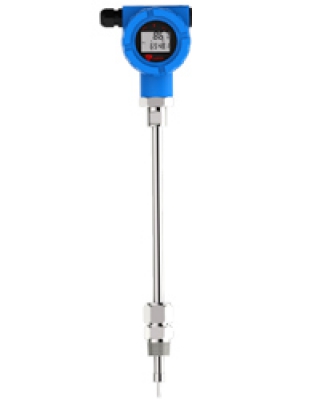

TGF450 COMATE Đồng hồ lưu lượng Khí nén | Nito dạng cắm ( Insertion )
Hãng cung cấp : COMATE
Model : TGF450
Chất lượng : Bảo hành 24 tháng
 Catalog Video

Specifications



Insertion type

In-line type

Media Compatibility

Air, Nitrogen

Pipe diameter

DN25~900mm

DN15~300mm

Flow velocity range

0.6~60Nm/s or 0.9~90Nm/s or 1.2~120Nm/s

Accuracy

0.5% RD+ ±1.5% FS

Temperature of medium

40~+150°c

Pressure of medium

1.6MPa

4.0Mpa

Power supply

DC13.542V

Response time

1 second

Output

Frequency as standard, pulse and RS485 as optional

Communication

RS~485 as standard , 4~20mA@HART as optional

Date displayed

Mass flow, Volume flow in normal condition
Total flow , Temperature of medium. Velocity

Ingress protection grade

IP65 (GB China)



Measurement range

Pipe size (mm)

Pipe size

(inch)

Option 1

(0.3~30 Nm/s)

Standard

(0.6~60 Nm/s)

Option 2

(0.9~90 Nm/s)

Option 3

(1.2~120 Nm/s)

Min
(Nm3

/hr)

Max
(Nm3

/hr)

Min
(Nm3

/hr)

Max
(Nm3

/hr)

Min
(Nm3

/hr)

Max
(Nm3

/hr)

Min
(Nm3

/hr)

Max
(Nm3

/hr)

25 mm

1“

0.53

53

1.05

105.9

1.58

158.8

2.11

211.8

32 mm

1 1/4"

0.87

86.7

1.73

173.5

2.6

260.3

3.47

347.1

40 mm

1 1/2"

1.36

135.6

2.71

271.1

4.06

406.7

5.42

542.3

50 mm

2"

2.12

211.9

4.23

423.7

6.35

635.5

8.47

847.4

65 mm

2 1/2"

3.58

358.1

7.1

716.1

10.7

1074.1

14.3

1432.2

80 mm

3"

5.42

542.3

10.8

1084.7

16.2

1627.1

21.6

2169.4

100 mm

4"

8.47

847.5

16.9

1694.9

25.4

2542.3

33.8

3389.8

125 mm

5"

13.2

1324.2

26.4

2648.3

39.7

3972.4

52.9

5296.6

150 mm

6"

19.1

1906.8

38.1

3813.5

57.2

5720.3

76.2

7627.1

200 mm

8"

33.9

3389.8

67.7

6779.6

101.6

10169.4

135.5

13559.3

250 mm

10"

53

5296.6

105.9

10593.2

158.8

15889.8

211.8

21186.4

300 mm

12"

76.3

7627.1

152.5

15254.2

228.8

22881.3

305

30508.4



Model Number

Model

Basic Model

TGF450-

C

2

T

1

1

C

B

C

8

1



Process Connection

Flanged in-line

F





















Insertion (NPT)

C





















Insertion (NPT)

with anti-ejection design

D





















Inertion

(with flange)

G





















Probe Length

290mm

(DN25~DN150)

1



















440mm

(DN25~DN500)

2



















Other

Q



















Transmitte

Integral

T

















Remote

R

















Material

OCr18Ni9(304)

1















316

2















Other

Q















Pressure Rating

1.6 Mpa

1













2.5 Mpa

2













4 Mpa

3













6.3 Mpa

4













Flange Standard

For Chemical industry

A











GB China

B











ANSI

C











Other

Q











Max Temper

-ature

Standard T≤150)

N









Other

Q









Enclosure

Comate blue enclosure

C







Transmitte

pulse/frequency + 4~20mA@HART

7





pulse/frequency + 4~20mA + RS485

8





Power supply

13.5~42VDC

1



85~265VAC 50/60Hz

2



Pipe size

please use 3 digit pipe size, such as DN50=050, DN300=300

XXX

Remark:

1. Ball valve, Hop-tap insertion tool and hot-tap hole opener are as accessoires,

please remark if you need any of them

2. Please indicate flow rate along with the model number selected

3. If you have any requirement that can not be fulfilled in this document,

please check with us to see the availability

4. The model selected in 1st line is the standard configuration with no accessories
